Brief introduction:SBW-T series voltage regulation and voltage regulator is a personalized new generation of intelligent fast energy-saving voltage regulator power supply tailored for users in this industry on the basis of our company's intelligent CNC compensated AC voltage regulator, for refrigeration unit testing or large laboratory users who need multi-level voltage regulation and special needs for power safety. The voltage regulation and voltage regulator adopts intelligent control of microcontroller and is e
The SBW-T series voltage regulator is a personalized new generation intelligent fast energy-saving voltage regulator tailored for users in the refrigeration unit testing or large laboratory who need multiple voltage adjustments and special requirements for electrical safety, based on our company's intelligent CNC compensating AC voltage regulator. The voltage regulator adopts intelligent control by a microcontroller and is equipped with a multilingual LCD display, highlighting the safety, stability, energy saving, and user-friendly human-machine interface of this device. Compared with the traditiSBW-T series voltage regulation and voltage regulator is a personalized new generation of intelligent fast energy-saving voltage regulator power supply tailored for users in this industry on the basis of our company's intelligent CNC compensated AC voltage regulator, for refrigeration unit testing or large laboratory users who need multi-level voltage regulation and special needs for power safety. The voltage regulation and voltage regulator adopts intelligent control of microcontroller and is equipped with multi-language LCD display, highlighting the safety, stability, energy saving and humanized human-machine interface of this equipment. Compared with the traditional compensatory voltage regulator, it has three significant advantages: intelligent control and display, fast voltage regulation, and silent energy saving. This special voltage regulator adopts a true RMS sampling circuit, which can accurately detect the RMS of various voltage waveforms, prevent electromagnetic and radio frequency interference, effectively filter out power grid pollution, and is equipped with RS-232 interface, which can realize remote control, telemetry, and remote signal functions. SBW-JF series microcomputer room special voltage regulator is a personalized product tailored for microcomputer room users, mainly used for various computer centers, data center equipment support, and used for game halls, Internet cafes, entertainment centers, etc. SBW-ST series voltage regulator regulator The regulator should be used indoors, and the normal use conditions are: 1. Ambient temperature: -10°C—+40°C 2. Altitude: <1000M 3. Relative humidity: 20%-90% 4. There are no gases, vapors, chemical deposits, dust, dirt and other explosive and corrosive media that seriously affect the insulation of the voltage regulator. 5. There is no serious vibration or bump in the installation site.
The main technical specifications of SBW-T series compensated voltage regulation regulator
Infusion | Allowed input voltage range | Regular three-phase 3Φ4W+G AC380V±10% wide range can be customized Regular single-phase 1Φ2W+G AC220V±10% wide range can be customized |
Meet the pressure regulation index Design scope: | Conventional three-phase 3Φ4W+G AC380V-400V wide range can be customized Conventional single-phase 1Φ1W+G AC220V-230V wide range can be customized | |
Rated frequency | 50HZ/60HZ | |
lose | Output voltage regulation range | The input voltage meets the design index range, and the output voltage can be adjusted according to the specified index: Customized products: by technical agreement or order. Voltage regulation method: 1. The panel LCD touch screen is set to regulate and regulate the voltage; 2. Five-stage programmable automatic voltage regulation and voltage regulation. |
Accuracy of pressure regulation and regulation | Regular products: the upper limit of the gear rating line/phase voltage average ±1c/o Special customized products according to technical agreements | |
Response time | ≤0.1s | |
Stabilization time | ≤ 1.5s (10% step change in input voltage relative rating) | |
Waveform distortion | The increment ≤ 0.5% | |
efficiency | By technical agreement | |
Three-phase imbalance | The increment ≤ 0.5% | |
protection | Overvoltage | If the output line/phase voltage is 10 C/o higher than the set value, the alarm will be set and the output will be cut off with a delay of 10 seconds (Overvoltage value and delay time can be set according to user requirements) |
Undervoltage | If the output line/phase voltage is 12c/o below the set value, the alarm will be alarmed and the output will be cut off with a delay of 20 seconds (The undervoltage value and delay time can be set according to user requirements) |

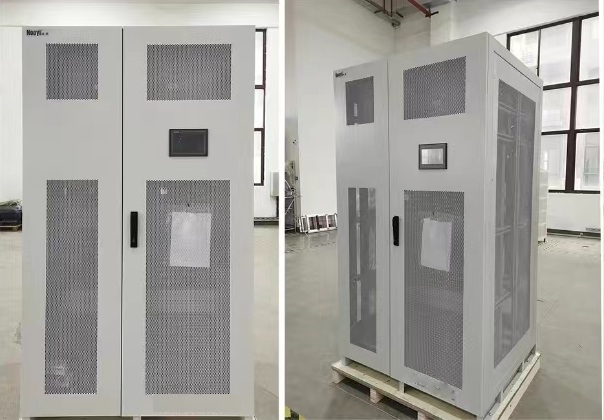

Styling at a glance
The model specifications of SBW-ST series compensatory voltage regulator are as follows:
|
Model number Specifications |
Rated capacity kVA |
Input voltage allowed |
Output voltage Adjustment Range (V) |
appearance number |
endure press |
insulation resistance MΩ |
effect rate |
Waveform distortion |
Operating frequency |
Regulator precision |
|
SBW-T-20 |
20 |
380 ± 10% |
Regular products: Input AC380V -400V range Output meets 390V±12%
Customized products: Applicable pressure regulation ratio (low pressure: high pressure) within 1:2
Customizable: 380V±15% 380V±20% 380V±25% 380V±30% 380V±35% or other special voltage ranges
|
Three
appearance
|
2000V 10mA 1 point Zhong None Breakdown |
≥3 |
≥ 97% |
≤0.1% |
50 ～ 60 |
Routine and within 20% ±1%
Wide range±2-3% |
|
SBW-T-30 |
30 |
|||||||||
|
SBW-T-50 |
50 |
|||||||||
|
SBW-T-60 |
60 |
|||||||||
|
SBW-T-80 |
80 |
|||||||||
|
SBW-T-100 |
100 |
|||||||||
|
SBW-T-120 |
120 |
|||||||||
|
SBW-ST-150 |
150 |
|||||||||
|
SBW-T-180 |
180 |
≥ 98% |
||||||||
|
SBW-T-200 |
200 |
|||||||||
|
SBW-T-225 |
225 |
|||||||||
|
SBW-T-250 |
250 |
|||||||||
|
SBW-T-320 |
320 |
|||||||||
|
SBW-T-400 |
400 |
|||||||||
|
SBW-T-500 |
500 |
|||||||||
|
SBW-T-600 |
600 |
|||||||||
|
SBW-T-800 |
800 |
|||||||||
|
SBW-T-1000 |
1000 |
|||||||||
|
SBW-T-1200 |
1200 |
|||||||||
|
SBW-T-1600 |
1600 |
|||||||||
|
SBW-T-2000 |
2000 |
|||||||||
|
SBW-T-2500 |
2500 |
|||||||||
|
SBW-T-3000 |
3000 |
|||||||||
|
DBW-T-15 |
15 |
220 ± 10% |
Regular products: Input AC220V -230V range Output meets 225V±12% Customized products: Applicable voltage regulation ratio low voltage: high voltage within 1:2 |
single
appearance |
1500V 10mA 1 point Zhong None Breakdown |
≥2 |
≥ 97% |
≤0.1% |
50 ～ 60 |
Routine and within 20% ±1%
Wide range±2-3% |
